Rental equipment

Our rental equipment at a glance

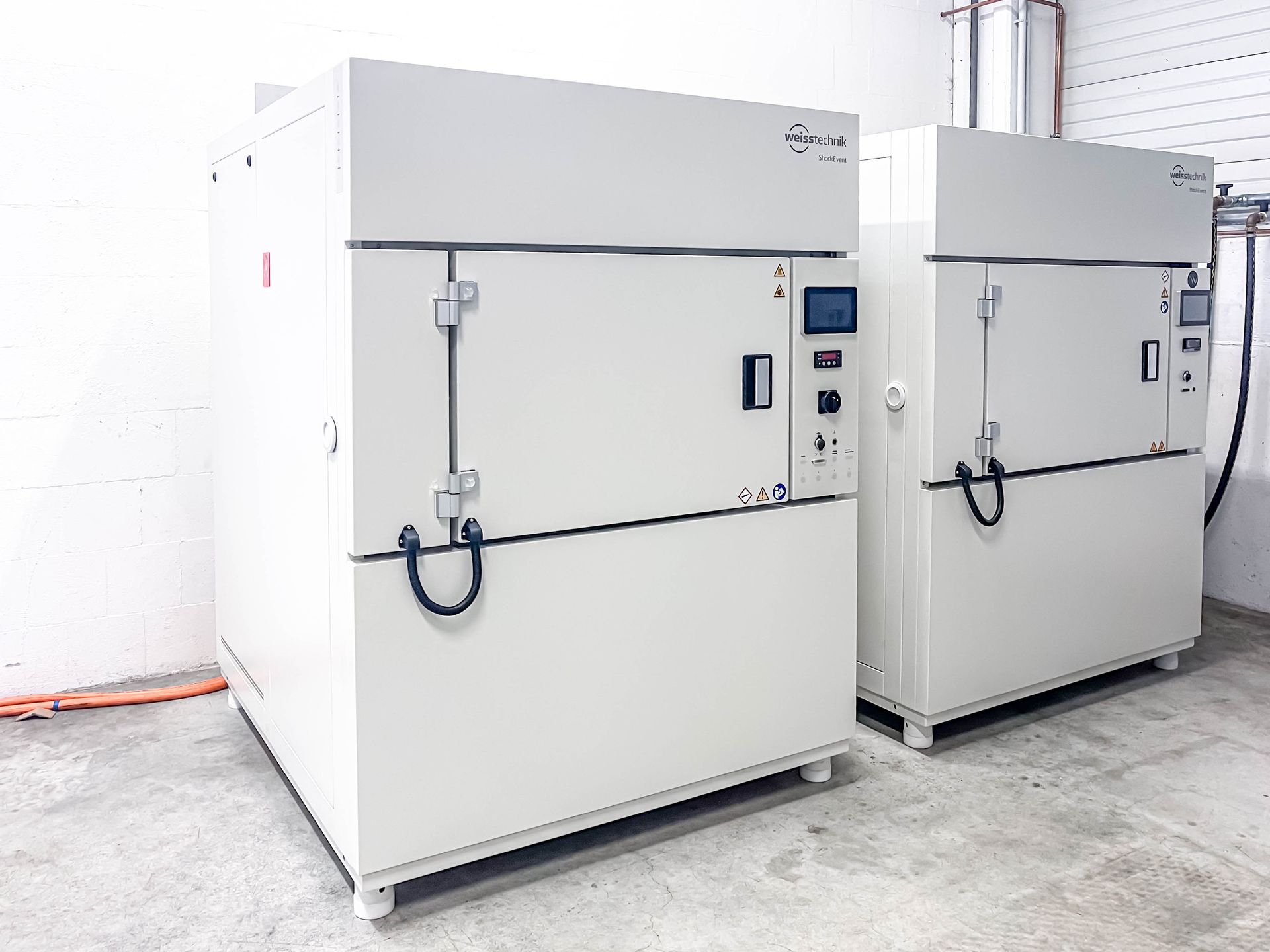

Thermoshock Kammer Weiss ShockEvent D/210/a/V1

  • Test room 700mm x 600mm x 500mm
  • Maximum bay load 150 kg
  • Temperature range hot chamber 50°C to 225°C
  • Temperature range cold chamber -70°C to 0°C

Power analyzer Yokogawa WT5000

  • Up to 7 voltage and current channels
  • two inputs for speed/torque
  • with LEM IN1000-s or LEM IN2000-s converters

Battery Simulator/Cycler Scratch VES 4.1c

  • Mobile use thanks to wheels
  • SiC technology
  • Maximum output power 300kW up to 1000V and 1000A
  • High-speed FPGA interface dSpace Scalexio compatible
  • CAN and EtherCAT interface
  • Width: 1800mm
  • Height: 2350mm
  • Depth: 600mm
  • Weight: 1000kg

Power analyzer DEWETRON DEWE3-PA8

  • Up to 16 voltage and current channels
  • Up to 10 MS/s and 18-bit A/D conversion
  • 6 counter inputs for torque or speed
  • CAN or EtherCAT interface
  • Plug-and-play current transformer supports up to 2000A RMS with integrated power supply
Button

Climate chamber Weiss ClimeEvent C1500

  • Test chamber volume 1500l
  • Test room dimensions 950 x 1100 x 1475mm
  • External dimensions: 2060 x 1390 x 2524mm
  • Weight: 1100kg
  • Humidity range: 10 to 98% RH
  • Temperature gradient 3 K/min
  • Minimum temperature -40°C
  • Maximum temperature +180°C

Button

Climate chamber Weiss ClimeEvent C1000

  • Test chamber volume 1000l
  • Test room dimensions 950 x 1100 x 950mm
  • External dimensions: 2000 x 1415 x 2030mm
  • Weight: 1100kg
  • Humidity range: 10 to 98% RH
  • Temperature gradient 3 K/min or 5 K/min
  • Minimum temperature -72°C
  • Maximum temperature +180°C
Button

Conditioning unit - Autotherm AKW T300W

  • Temperature control circuit 1+2
  • Heat output: 18kW
  • Cooling capacity: 2.5kW @ -30°C
  • Temperature range: -30°C to +130°C
  • Filling volume expansion tank: 16l
  • Delivery pressure: up to 7.5 bar
  • Max. flow rate: 53 l/min
  • Coolant: 40/60% water/glycol
  • Width: 800mm
  • Height: 2200mm
  • Depth: 1460mm
  • Weight: 1000kg
Button

Conditioning unit - Lauda Integral XT 1850 WS

  • Heat output: 16 kW
  • Cooling capacity: up to 18.5 kW
  • Temperature range: -50°C to +220°C
  • Expansion tank filling volume: 17.4l
  • Delivery pressure: up to 5.8 bar
  • Max. flow rate: 90 l/min
  • Coolant: 40/60% water/glycol
  • Width: 700mm
  • Height: 1600mm
  • Depth: 550mm
Button

Thermoshock Kammer Weiss ShockEvent D/210/a/V1

  • Test room 700mm x 600mm x 500mm
  • Maximum bay load 150 kg
  • Temperature range hot chamber 50°C to 225°C
  • Temperature range cold chamber -70°C to 0°C
